7448258022

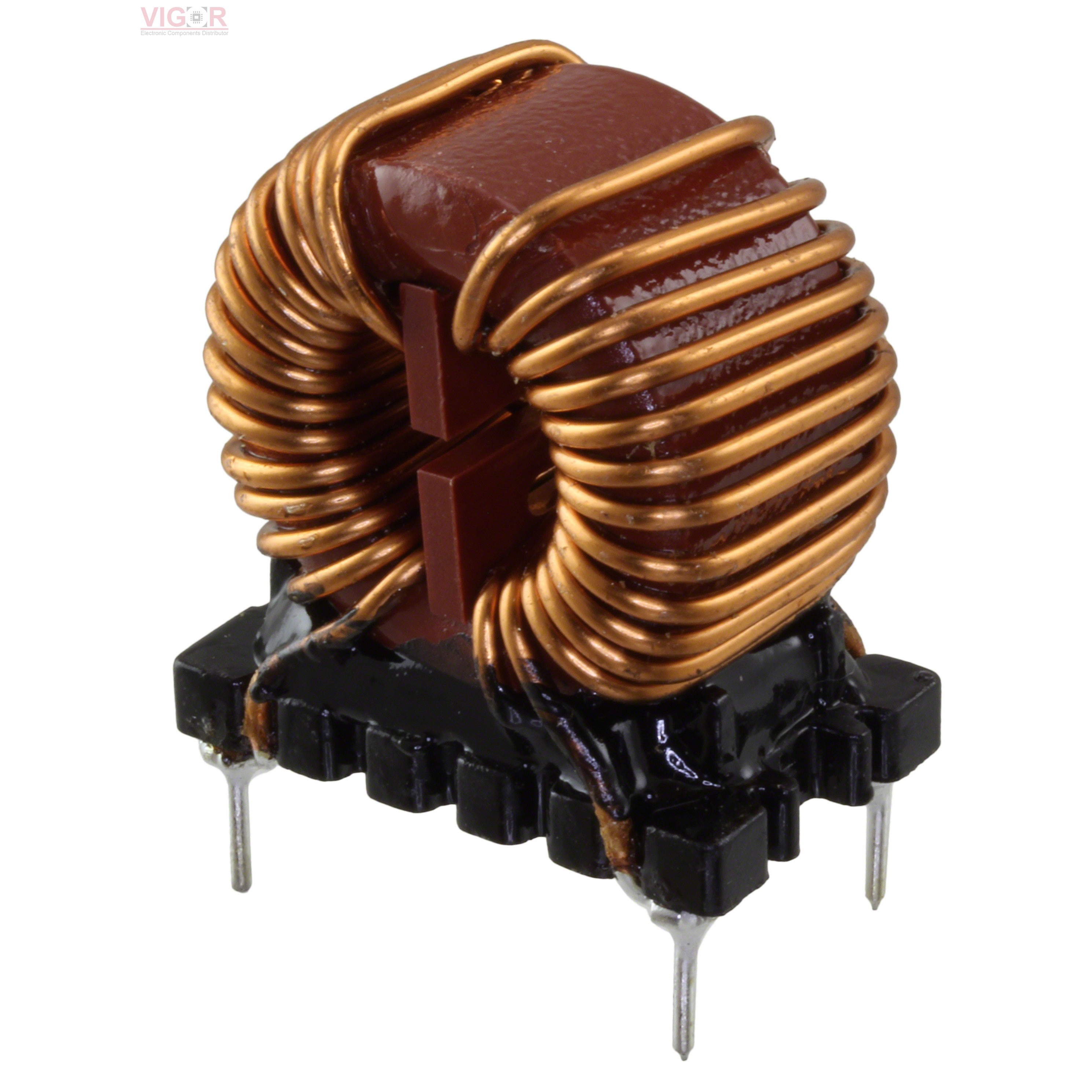

Image is for reference,
please contact us to get the real picture

Part No :

7448258022

Manufacturer
Würth Elektronik Midcom
Description
CMC 2.2MH 8A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
7448258022 PDF
Availability
714 pieces
Unit Price
$5.94000

Current price of 7448258022 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:WE-CMB
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:2.2 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):8A
DC Resistance (DCR) (Max):14mOhm
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.181" L x 0.827" W (30.00mm x 21.00mm)
Height (Max):1.378" (35.00mm)
Package / Case:Vertical, 4 PC Pin
