744835021220

744835021220

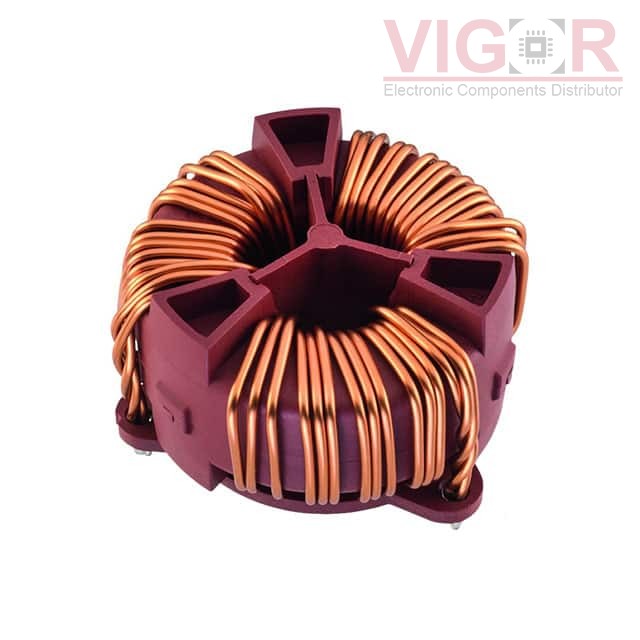

Image is for reference,
please contact us to get the real picture

Part No :

744835021220

Manufacturer
Würth Elektronik Midcom
Description
WE-TPBHV THREE-PHASE COMMON MODE
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
744835021220 PDF
Availability
0 pieces
Unit Price
$36.25000

Current price of 744835021220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744835021220 Specifications
Type Description
Series:WE-TPBHV
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:3
Impedance @ Frequency:-
Inductance @ Frequency:2.1 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):22A
DC Resistance (DCR) (Max):9mOhm
Voltage Rating - DC:-
Voltage Rating - AC:760V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:2.756" Dia (70.00mm)
Height (Max):1.535" (39.00mm)
Package / Case:Horizontal, 6 PC Pin
