B82724V2203U040

B82724V2203U040

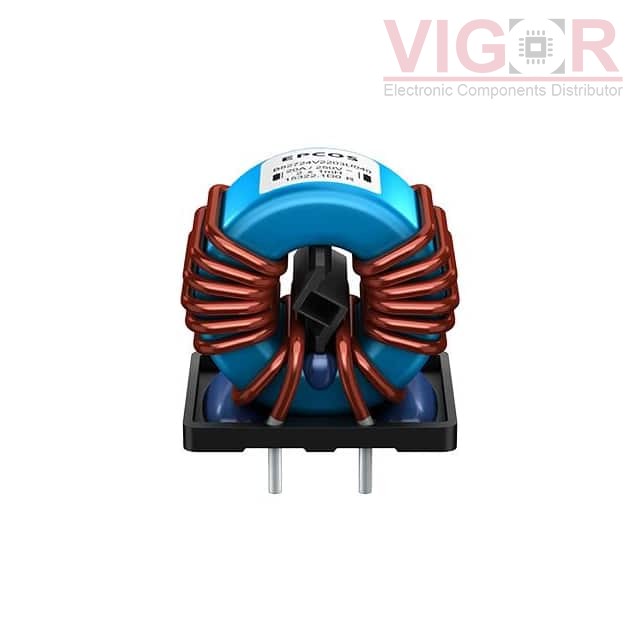

Image is for reference,
please contact us to get the real picture

Part No :

B82724V2203U040

Manufacturer
TDK EPCOS
Description
RING CORE CHOKE 2X1MH 20A/60C
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
B82724V2203U040 PDF
Availability
148 pieces
Unit Price
$9.20000

Current price of B82724V2203U040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82724V2203U040 Specifications
Type Description
Series:B82724V2203
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:1 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):17A
DC Resistance (DCR) (Max):3.2mOhm
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.299" L x 0.906" W (33.00mm x 23.00mm)
Height (Max):1.181" (30.00mm)
Package / Case:Vertical, 4 PC Pin
