7516-RC

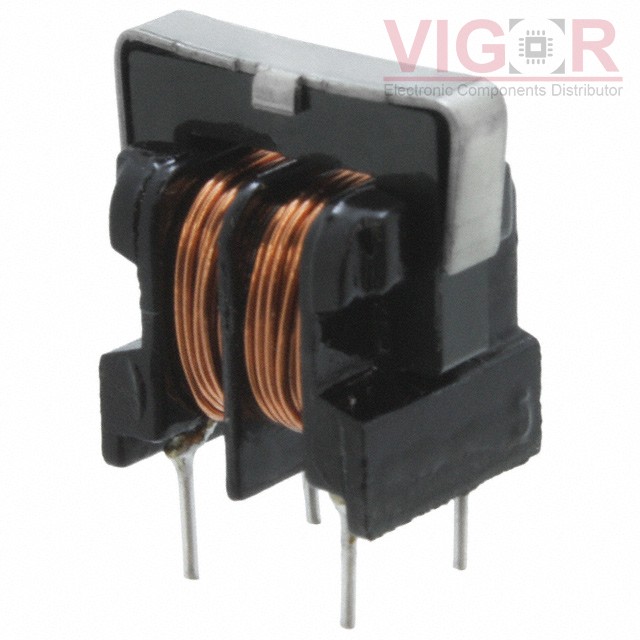

Image is for reference,
please contact us to get the real picture

Part No :: 7516-RC

Manufacturer: J.W. Miller / Bourns

Description: CMC 30MH 800MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: 7516-RC PDF

Availability: 0 pieces

Unit Price: ~~$1.27162~~

Current price of 7516-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7516-RC Specifications

Type	Description
Series:	7500
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	30 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	760mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max):	1.083" (27.50mm)
Package / Case:	Vertical, 4 PC Pin
