B82614R2801A030

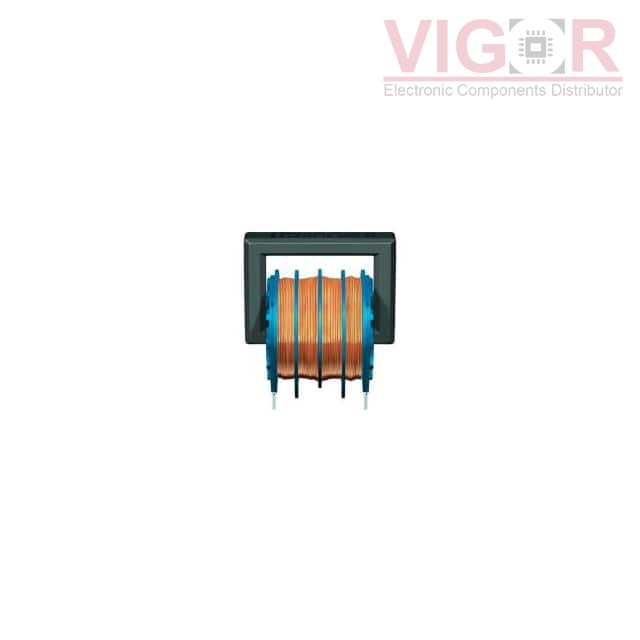

Image is for reference,
please contact us to get the real picture

Part No :: B82614R2801A030

Manufacturer: TDK EPCOS

Description: CMC 3MH 800MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: B82614R2801A030 PDF

Availability: 0 pieces

Unit Price: ~~$2.28265~~

Current price of B82614R2801A030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82614R2801A030 Specifications

Type	Description
Series:	B82614
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	1.9Ohm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.280" L x 0.827" W (32.50mm x 21.00mm)
Height (Max):	1.220" (31.00mm)
Package / Case:	Vertical, 4 PC Pin
