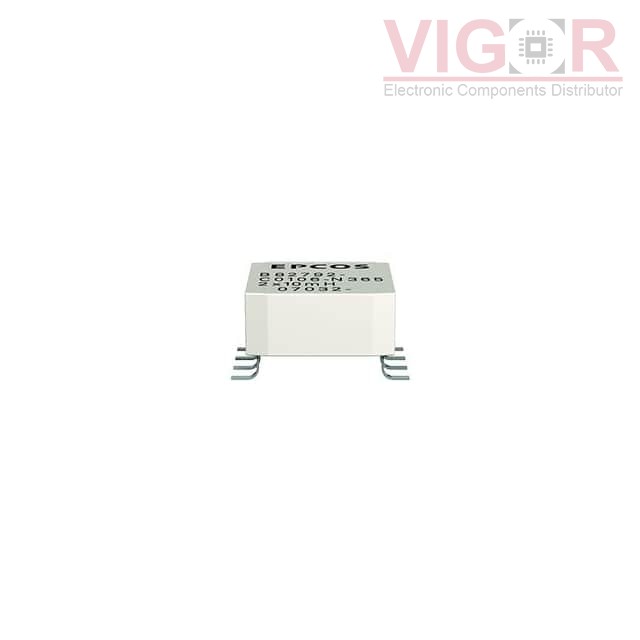

B82792C0226N365

Image is for reference,
please contact us to get the real picture

Part No :: B82792C0226N365

Manufacturer: TDK EPCOS

Description: CMC 22MH 200MA 2LN SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: B82792C0226N365 PDF

Availability: 0 pieces

Unit Price: ~~$2.47498~~

Current price of B82792C0226N365 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82792C0226N365 Specifications

Type	Description
Series:	B82792
Package:	Tape & Reel (TR)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	22 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	200mA
DC Resistance (DCR) (Max):	1.6Ohm (Typ)
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.453" L x 0.413" W (11.50mm x 10.50mm)
Height (Max):	0.287" (7.30mm)
Package / Case:	Horizontal, 8 Gull Wing
