SBT-0115W

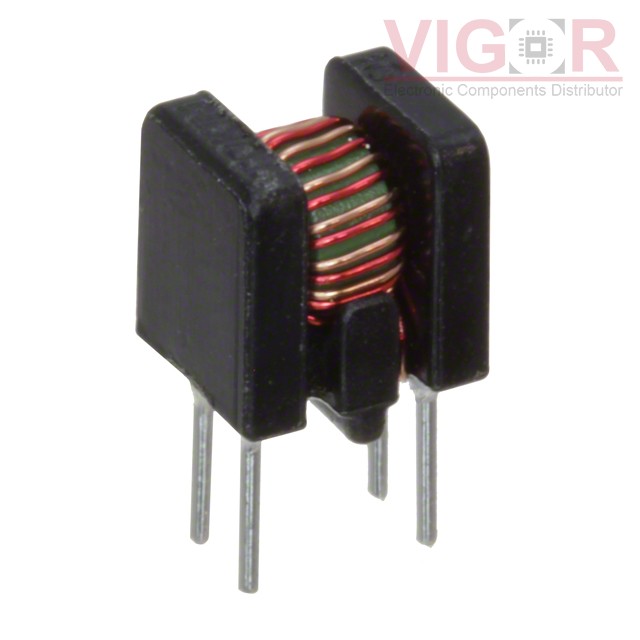

Image is for reference,
please contact us to get the real picture

Part No :: SBT-0115W

Manufacturer: KEMET

Description: CMC TROID, NI-ZN, 5UH, TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: SBT-0115W PDF

Availability: 193 pieces

Unit Price: ~~$2.84000~~

Current price of SBT-0115W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SBT-0115W Specifications

Type	Description
Series:	SBT-01W
Package:	Bulk
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	5 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	30mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 70°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	-
Height (Max):	0.354" (9.00mm)
Package / Case:	Vertical, 4 PC Pin
