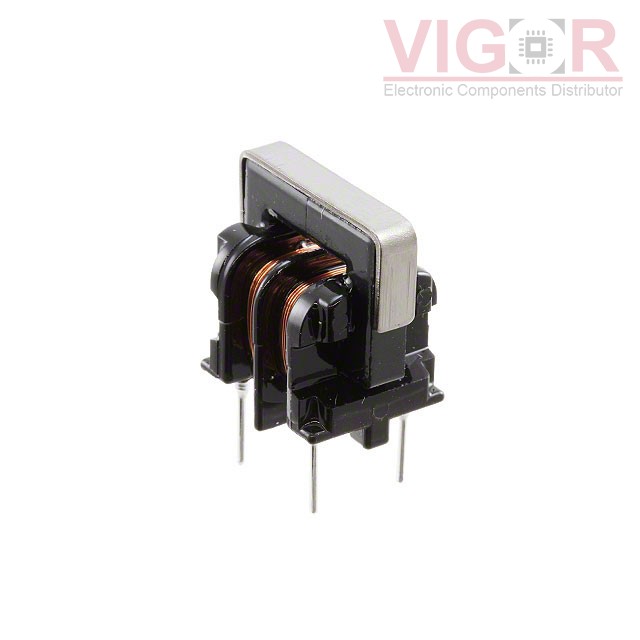

SU9VD-07020

Image is for reference,
please contact us to get the real picture

Part No :: SU9VD-07020

Manufacturer: KEMET

Description: CMC 20UH 700MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: SU9VD-07020 PDF

Availability: 998 pieces

Unit Price: ~~$1.93000~~

Current price of SU9VD-07020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SU9VD-07020 Specifications

Type	Description
Series:	SU
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	20 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	700mA
DC Resistance (DCR) (Max):	120mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max):	0.669" (17.00mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
