B82614R2202A030

B82614R2202A030

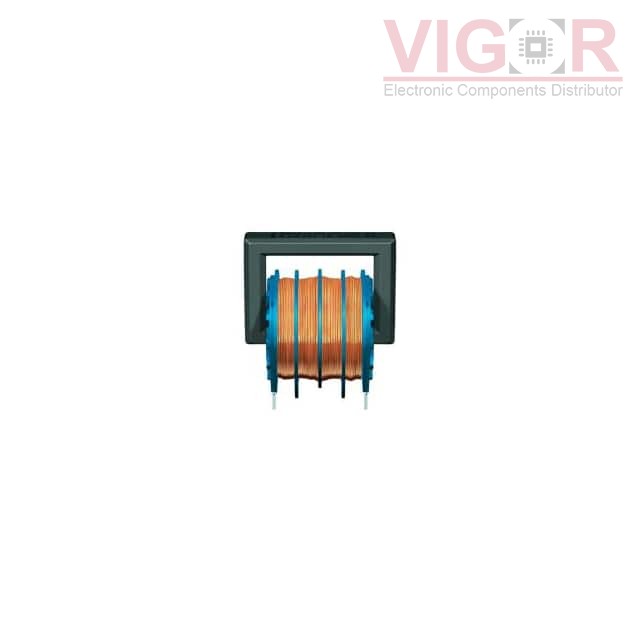

Image is for reference,
please contact us to get the real picture

Part No :

B82614R2202A030

Manufacturer
TDK EPCOS
Description
COMMON MODE CHOKE 1MH 2A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
B82614R2202A030 PDF
Availability
0 pieces
Unit Price
$2.28265

Current price of B82614R2202A030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82614R2202A030 Specifications
Type Description
Series:B82614
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:1 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2A
DC Resistance (DCR) (Max):430mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.280" L x 0.827" W (32.50mm x 21.00mm)
Height (Max):1.220" (31.00mm)
Package / Case:Vertical, 4 PC Pin
