B82727E6223A040

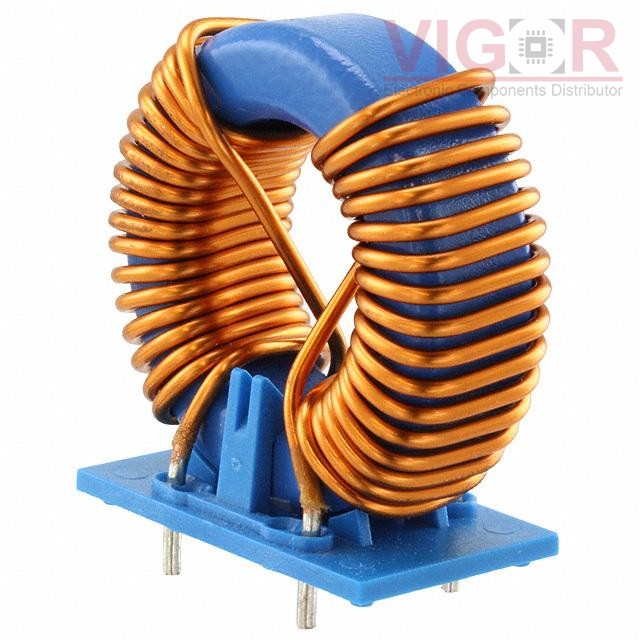

Image is for reference,
please contact us to get the real picture

Part No :: B82727E6223A040

Manufacturer: TDK EPCOS

Description: CMC 3.3MH 22A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: B82727E6223A040 PDF

Availability: 62 pieces

Unit Price: ~~$12.57000~~

Current price of B82727E6223A040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82727E6223A040 Specifications

Type	Description
Series:	B82727
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3.3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	22A
DC Resistance (DCR) (Max):	4.6mOhm (Typ)
Voltage Rating - DC:	1000V (1kV)
Voltage Rating - AC:	600V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	UR
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.890" Dia x 1.024" L (48.00mm x 26.00mm)
Height (Max):	1.772" (45.00mm)
Package / Case:	Vertical, 8 PC Pin

Please confirm the specifications of the products when ordering.
