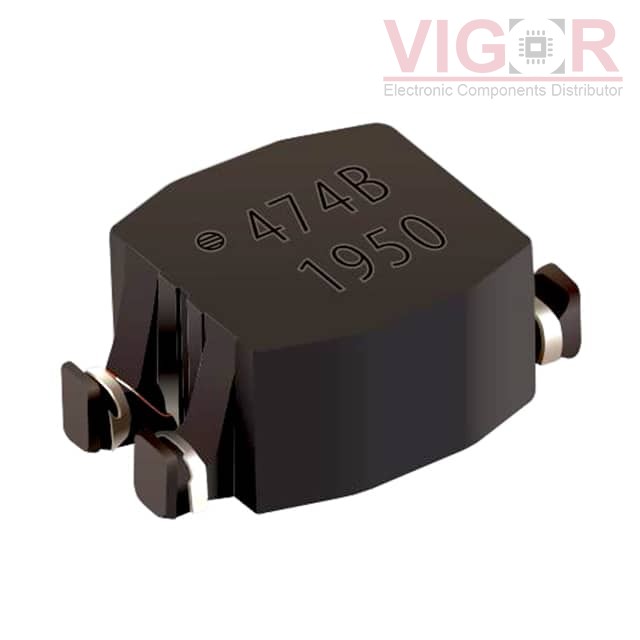

DR334A-113BE

Image is for reference,
please contact us to get the real picture

Part No :: DR334A-113BE

Manufacturer: J.W. Miller / Bourns

Description: CMC LINE FILTER SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: DR334A-113BE PDF

Availability: 490 pieces

Unit Price: ~~$1.23000~~

Current price of DR334A-113BE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DR334A-113BE Specifications

Type	Description
Series:	DR334A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	300 Ohms @ 20 MHz
Inductance @ Frequency:	11 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA (Typ)
DC Resistance (DCR) (Max):	120mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 135°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.354" L x 0.228" W (9.00mm x 5.80mm)
Height (Max):	0.142" (3.60mm)
Package / Case:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

CMCC0805261MT

CMC 0805 260R 20%

HOT

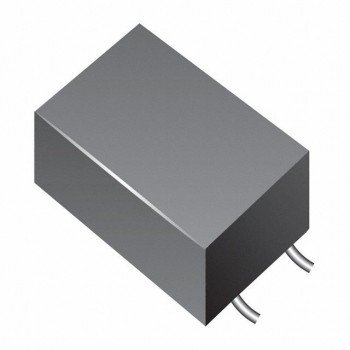

DR221-113AE

CMC 11UH 250MA 2LN SMD

HOT

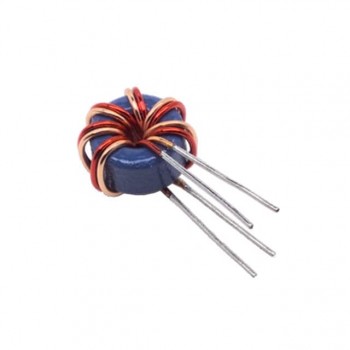

SHO-302
