CMF16-683600-B

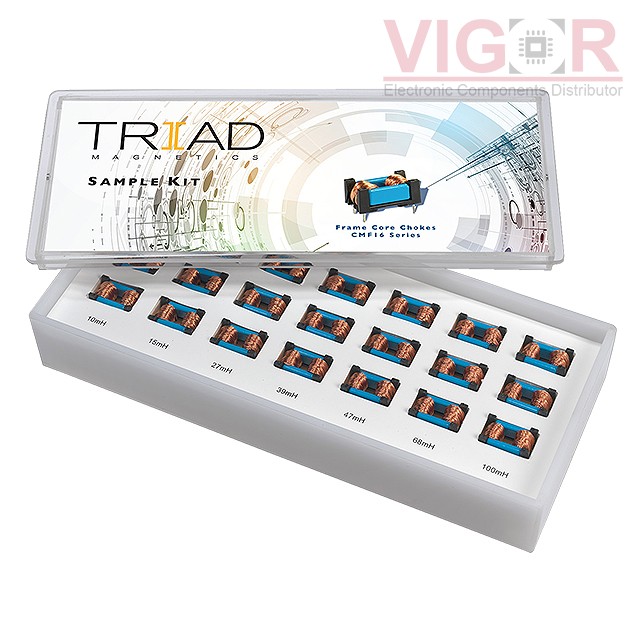

Image is for reference,
please contact us to get the real picture

Part No :: CMF16-683600-B

Manufacturer: Triad Magnetics

Description: CMC 68MH 600MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: CMF16-683600-B PDF

Availability: 439 pieces

Unit Price: ~~$1.51200~~

Current price of CMF16-683600-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMF16-683600-B Specifications

Type	Description
Series:	CMF
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	68 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	600mA
DC Resistance (DCR) (Max):	2.17Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max):	0.531" (13.50mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
