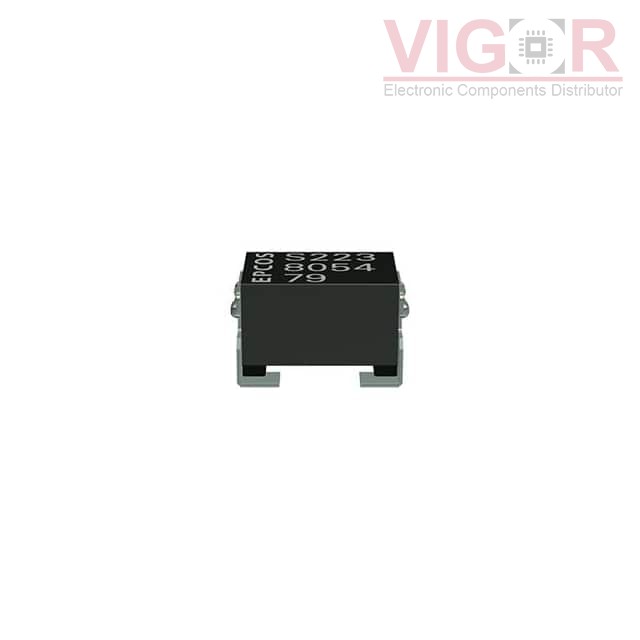

B82789S0223H002

B82789S0223H002

Image is for reference,
please contact us to get the real picture

Part No :

B82789S0223H002

Manufacturer
TDK EPCOS
Description
CMC 22UH 250MA 2LN SMD AEC-Q200
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
B82789S0223H002 PDF
Availability
0 pieces
Unit Price
$0.94185

Current price of B82789S0223H002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82789S0223H002 Specifications
Type Description
Series:B82789
Package:Tape & Reel (TR)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:22 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):250mA
DC Resistance (DCR) (Max):580mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:42V
Operating Temperature:-55°C ~ 150°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.205" L x 0.126" W (5.20mm x 3.20mm)
Height (Max):0.118" (3.00mm)
Package / Case:Horizontal, 4 L-Lead
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SS21V-150038

SS21V-150038

CMC 3.8MH,1.5A, 0.3OHM
HOT UU9LFHNP-HB102

UU9LFHNP-HB102

CMC 1MH 700MA 2LN TH

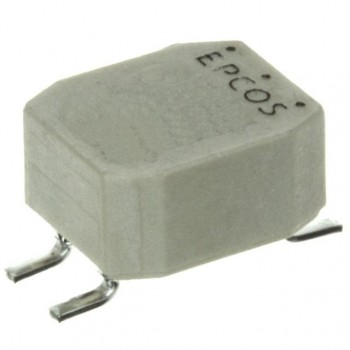

HOT B82793C0225N265
