PA2746NL

PA2746NL

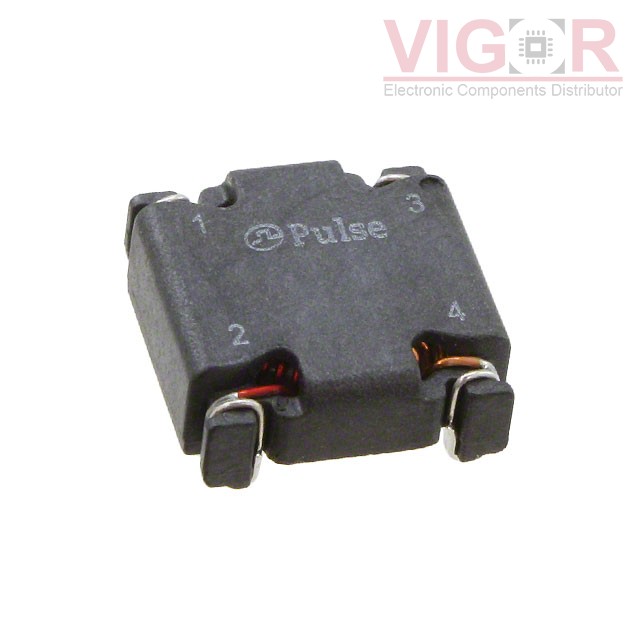

Image is for reference,
please contact us to get the real picture

Part No :

PA2746NL

Manufacturer
PulseLarsen Antenna
Description
COMMON MODE CHOKE 6A 2LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
PA2746NL PDF
Availability
2920 pieces
Unit Price
$1.95000

Current price of PA2746NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA2746NL Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):6A
DC Resistance (DCR) (Max):4.3mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 130°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.508" L x 0.500" W (12.90mm x 12.70mm)
Height (Max):0.220" (5.60mm)
Package / Case:Horizontal, 4 PC Pad
