B82720S2102N040

B82720S2102N040

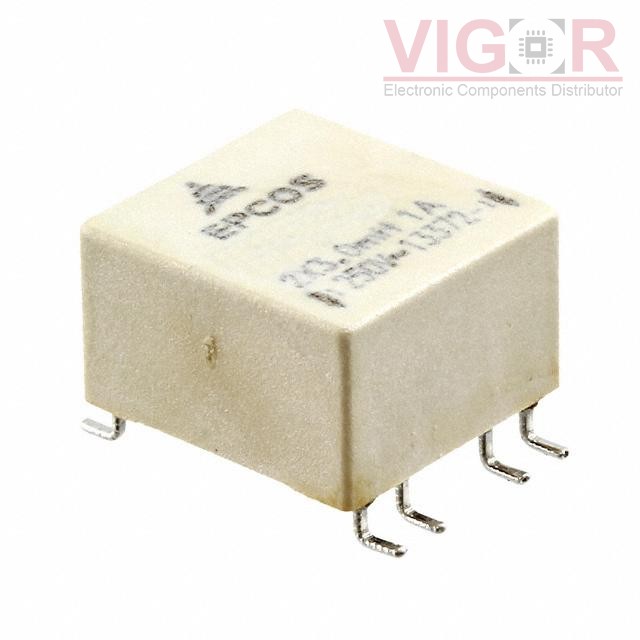

Image is for reference,
please contact us to get the real picture

Part No :

B82720S2102N040

Manufacturer
TDK EPCOS
Description
COMMON MODE CHOKE 3MH 1A 2LN SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
B82720S2102N040 PDF
Availability
1038 pieces
Unit Price
$2.95000

Current price of B82720S2102N040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82720S2102N040 Specifications
Type Description
Series:B82720
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1A
DC Resistance (DCR) (Max):220mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.571" L x 0.524" W (14.50mm x 13.30mm)
Height (Max):0.421" (10.70mm)
Package / Case:Horizontal, 8 Gull Wing
