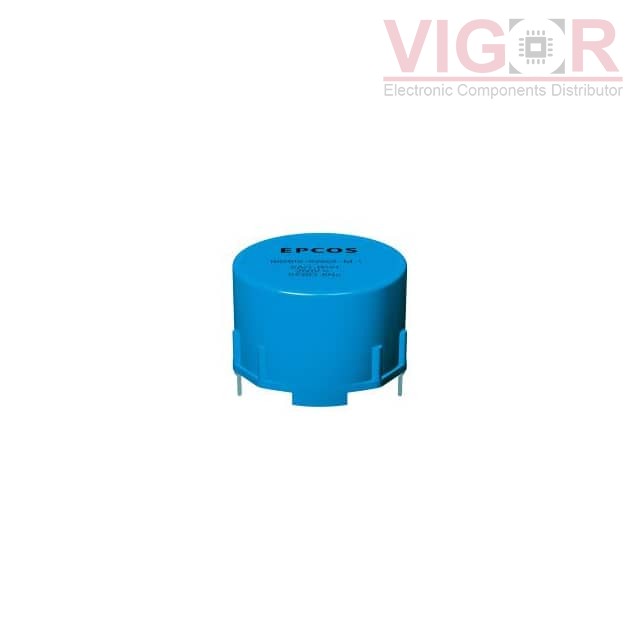

B82615B2202M001

Image is for reference,
please contact us to get the real picture

Part No :: B82615B2202M001

Manufacturer: TDK EPCOS

Description: CMC 5MH 2A 2LN TH PFC

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: B82615B2202M001 PDF

Availability: 46 pieces

Unit Price: ~~$8.85000~~

Current price of B82615B2202M001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82615B2202M001 Specifications

Type	Description
Series:	B82615
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	900mOhm (Typ)
Voltage Rating - DC:	350V
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	PFC
Mounting Type:	Through Hole
Size / Dimension:	1.732" L x 1.669" W (44.00mm x 42.40mm)
Height (Max):	1.181" (30.00mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

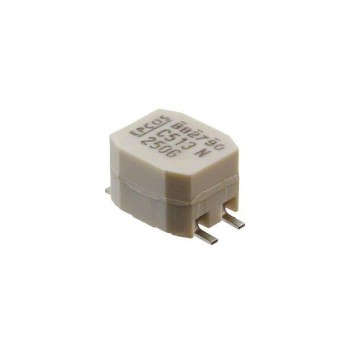

B82790C0513N201

CMC 51UH 500MA 2LN SMD AEC-Q200

HOT

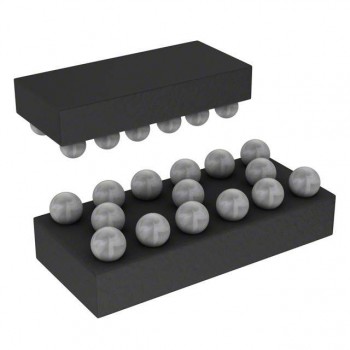

PCMF3USB30Z
