744273501

744273501

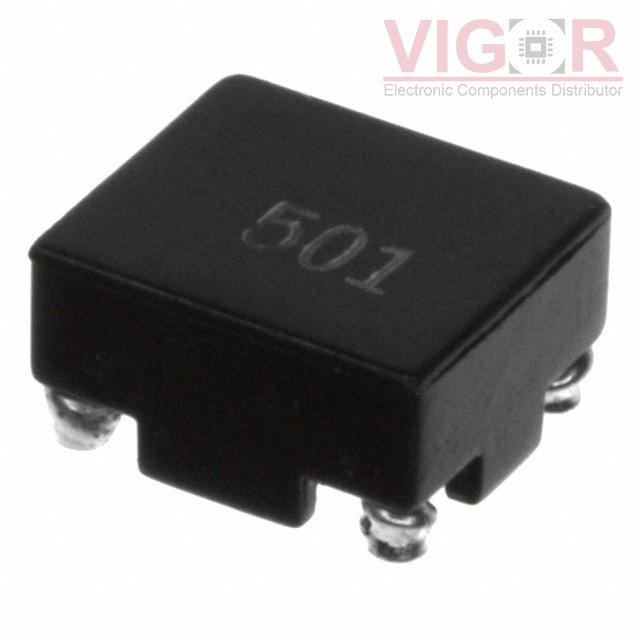

Image is for reference,
please contact us to get the real picture

Part No :

744273501

Manufacturer
Würth Elektronik Midcom
Description
CMC 5UH 5A 2LN 500 OHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
744273501 PDF
Availability
6589 pieces
Unit Price
$3.37000

Current price of 744273501 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744273501 Specifications
Type Description
Series:WE-SL5
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:500 Ohms @ 130 MHz
Inductance @ Frequency:5 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):5A
DC Resistance (DCR) (Max):5.5mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.374" L x 0.327" W (9.50mm x 8.30mm)
Height (Max):0.209" (5.30mm)
Package / Case:Horizontal, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
