B82615B2302M001

Image is for reference,
please contact us to get the real picture

Part No :

B82615B2302M001

Manufacturer
TDK EPCOS
Description
CMC 2.5MH 3A 2LN TH PFC
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
B82615B2302M001 PDF
Availability
0 pieces
Unit Price
$5.72075

Current price of B82615B2302M001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:B82615
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:2.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):3A
DC Resistance (DCR) (Max):400mOhm (Typ)
Voltage Rating - DC:350V
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:PFC
Mounting Type:Through Hole
Size / Dimension:1.732" L x 1.669" W (44.00mm x 42.40mm)
Height (Max):1.181" (30.00mm)
Package / Case:Horizontal, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
HOT 744831016164

744831016164

CMC 1.6MH 16.4A 2LN TH

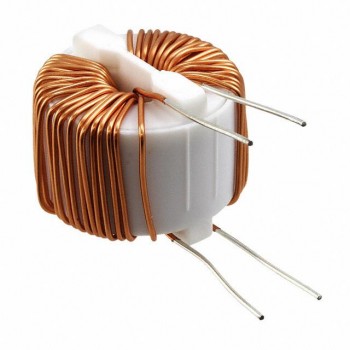

HOT SC-02-200

SC-02-200

COMMON MODE CHOKE 2MH 2A 2LN TH

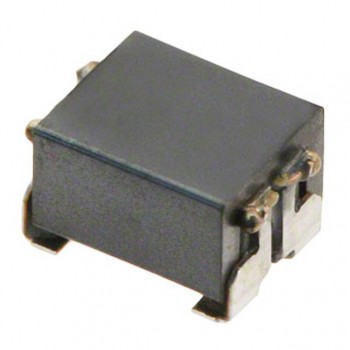

HOT B82789C113H1
