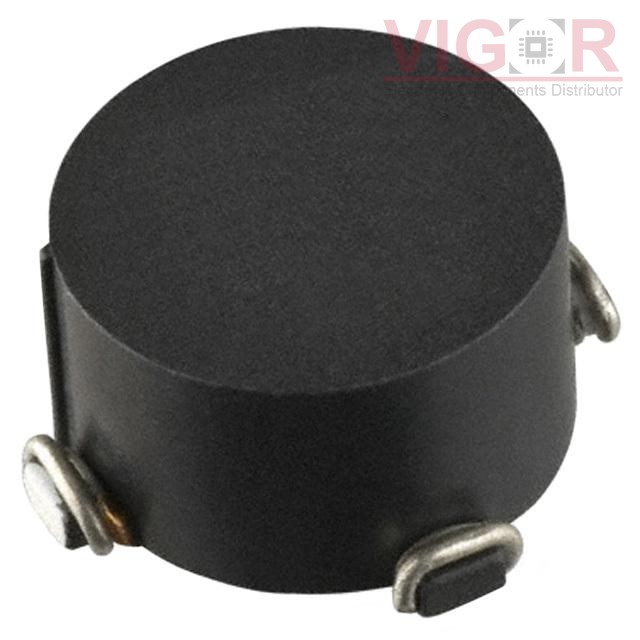

PM3700-40-RC

Image is for reference,
please contact us to get the real picture

Part No :: PM3700-40-RC

Manufacturer: J.W. Miller / Bourns

Description: COMMON MODE CHOKE 1MH 4A 2LN SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: PM3700-40-RC PDF

Availability: 4420 pieces

Unit Price: ~~$3.09000~~

Current price of PM3700-40-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM3700-40-RC Specifications

Type	Description
Series:	PM3700
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4A
DC Resistance (DCR) (Max):	20mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Max):	0.450" (11.43mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
