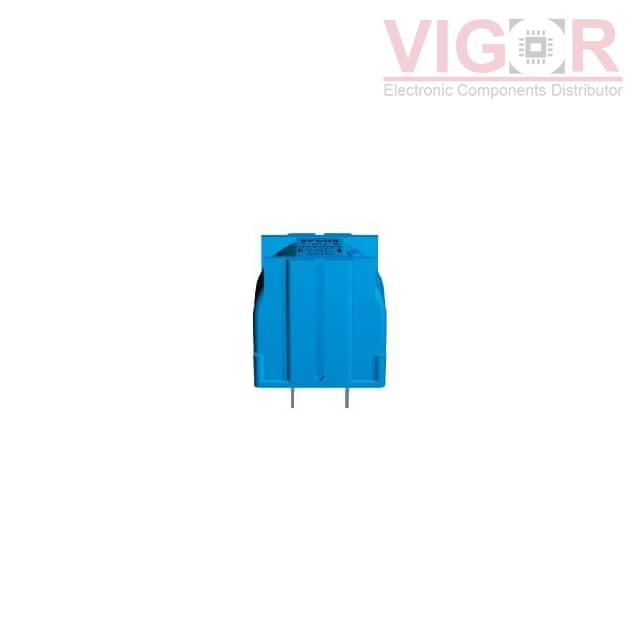

B82724J2252N001

Image is for reference,
please contact us to get the real picture

Part No :: B82724J2252N001

Manufacturer: TDK EPCOS

Description: CMC 5.6MH 2.5A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: B82724J2252N001 PDF

Availability: 0 pieces

Unit Price: ~~$2.10673~~

Current price of B82724J2252N001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82724J2252N001 Specifications

Type	Description
Series:	B82724
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	5.6 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.5A
DC Resistance (DCR) (Max):	125mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.232" L x 0.728" W (31.30mm x 18.50mm)
Height (Max):	1.307" (33.20mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
