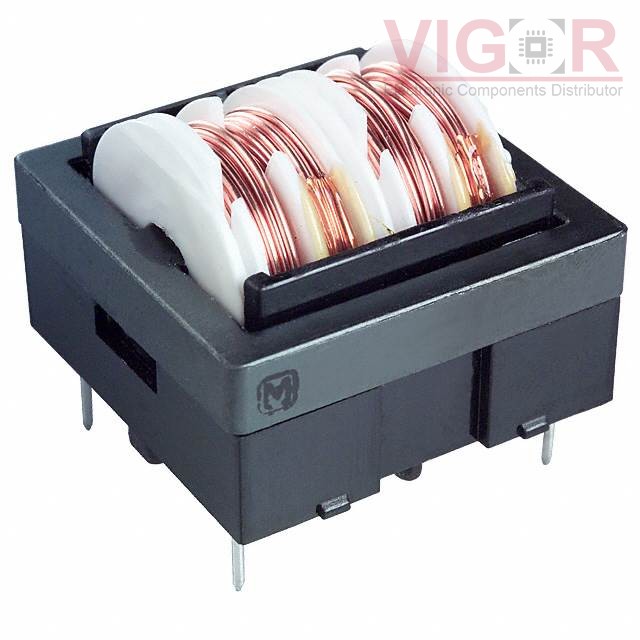

ELF-18D613

ELF-18D613

Image is for reference,
please contact us to get the real picture

Part No :

ELF-18D613

Manufacturer
Panasonic
Description
CMC 3.9MH 2.2A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
ELF-18D613 PDF
Availability
11 pieces
Unit Price
$2.19000

Current price of ELF-18D613 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELF-18D613 Specifications
Type Description
Series:H
Package:Bulk
Part Status:Obsolete
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:3.9 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2.2A
DC Resistance (DCR) (Max):104mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-20°C ~ 105°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.122" L x 1.142" W (28.50mm x 29.00mm)
Height (Max):0.925" (23.50mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SC-18-095J

SC-18-095J

CMC 0.95MH,18A, 0.0055OHM

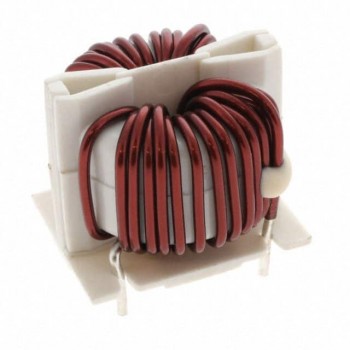

HOT SCR-030-0R6A170JH

SCR-030-0R6A170JH

CMC 17MH 3A 0.138OHM TH

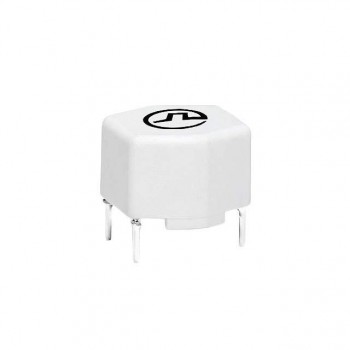

HOT FE2X03-8-3NL
