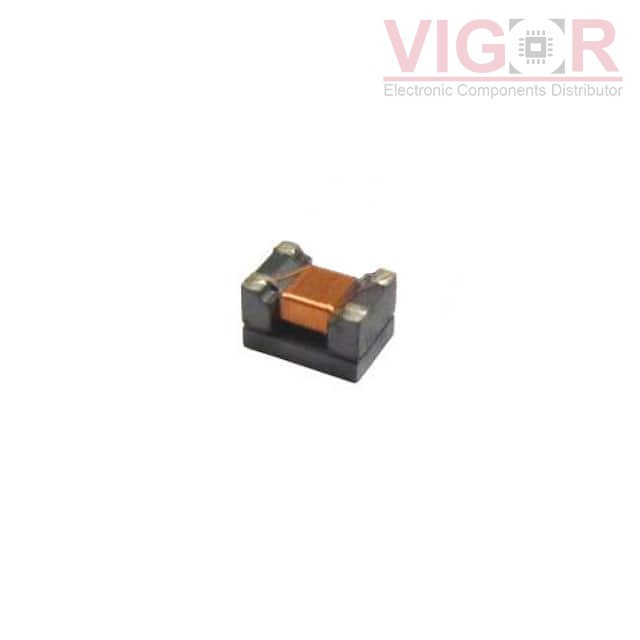

AWCU00453226113TT2

Image is for reference,
please contact us to get the real picture

Part No :: AWCU00453226113TT2

Manufacturer: Chilisin Electronics

Description: COMMON MODE CHOKE, AEC-Q200

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: AWCU00453226113TT2 PDF

Availability: 2497 pieces

Unit Price: ~~$1.44000~~

Current price of AWCU00453226113TT2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AWCU00453226113TT2 Specifications

Type	Description
Series:	*
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	600 Ohms @ 10 MHz
Inductance @ Frequency:	11 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	250mA
DC Resistance (DCR) (Max):	600mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-50°C ~ 150°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):	0.110" (2.80mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

B82724A2602N020

CMC 1.8MH 6A 2LN TH

HOT

7446321033

CMC 33MH 800MA 2LN TH

HOT

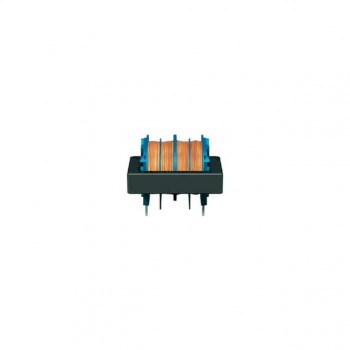

B82731H2801A030
