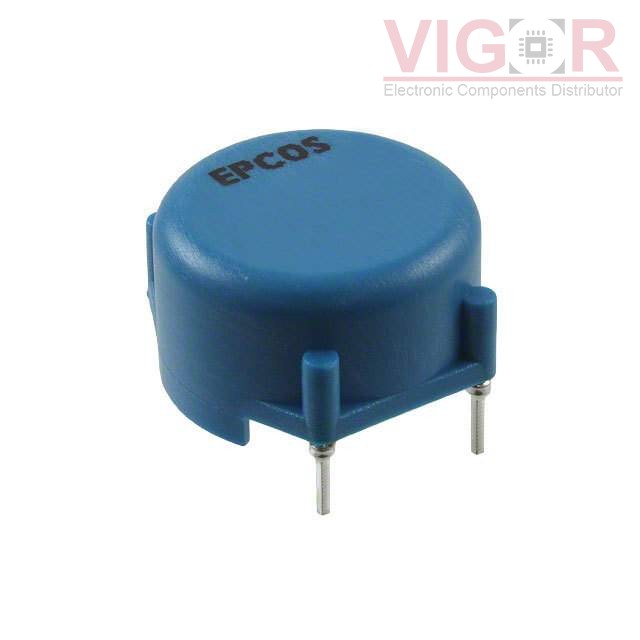

B82722A2501N001

B82722A2501N001

Image is for reference,
please contact us to get the real picture

Part No :

B82722A2501N001

Manufacturer
TDK EPCOS
Description
CMC 27MH 500MA 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
B82722A2501N001 PDF
Availability
556 pieces
Unit Price
$2.97000

Current price of B82722A2501N001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82722A2501N001 Specifications
Type Description
Series:B82722
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:27 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):500mA
DC Resistance (DCR) (Max):1.2Ohm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:ENEC, UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:0.894" L x 0.878" W (22.70mm x 22.30mm)
Height (Max):0.524" (13.30mm)
Package / Case:Horizontal, 4 PC Pin
