PA2754NL

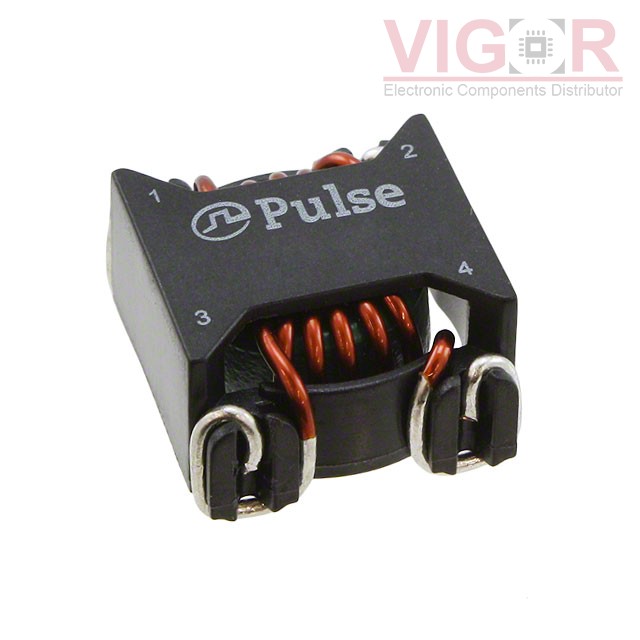

Image is for reference,
please contact us to get the real picture

Part No :: PA2754NL

Manufacturer: PulseLarsen Antenna

Description: COMMON MODE CHOKE 10A 2LN SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: PA2754NL PDF

Availability: 3205 pieces

Unit Price: ~~$2.40000~~

Current price of PA2754NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA2754NL Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	10A
DC Resistance (DCR) (Max):	3.75mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 130°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.750" L x 0.815" W (19.05mm x 20.70mm)
Height (Max):	0.440" (11.18mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
