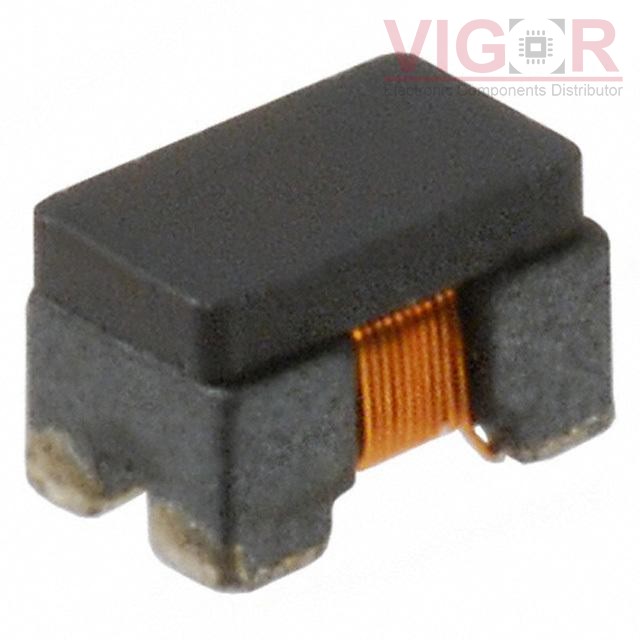

ACE1V2012-222-R

Image is for reference,
please contact us to get the real picture

Part No :: ACE1V2012-222-R

Manufacturer: PowerStor (Eaton)

Description: IND CMC 100MHZ 2.2KOHM 150MA

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: ACE1V2012-222-R PDF

Availability: 3608 pieces

Unit Price: ~~$0.68000~~

Current price of ACE1V2012-222-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACE1V2012-222-R Specifications

Type	Description
Series:	ACE1V2012
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	2.2 kOhms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	150mA
DC Resistance (DCR) (Max):	2Ohm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 105°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max):	0.055" (1.40mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

B82732R2701B030

CMC 39MH 700MA 2LN TH

HOT

B82790S0253N201

CMC 25UH 500MA 2LN SMD AEC-Q200

HOT

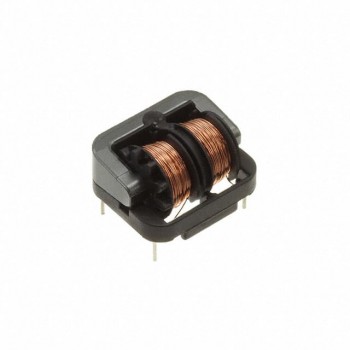

SSR10H-06475
