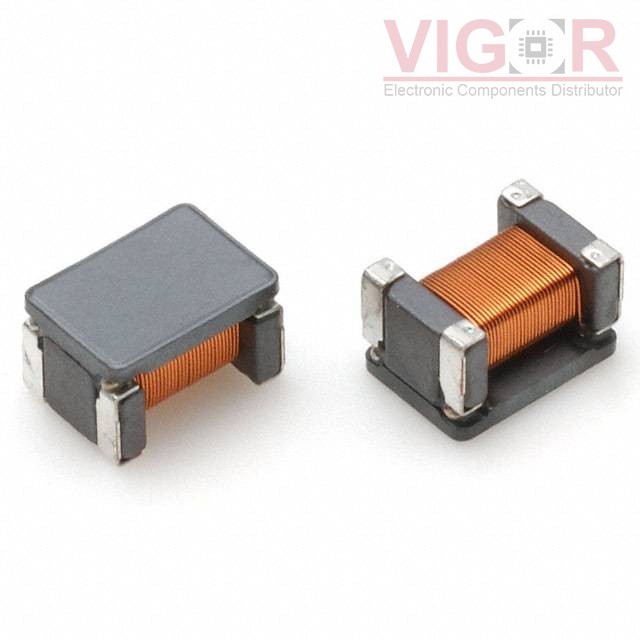

LGJ45B-101-2P-TL003

LGJ45B-101-2P-TL003

Image is for reference,
please contact us to get the real picture

Part No :

LGJ45B-101-2P-TL003

Manufacturer
TDK Corporation
Description
CMC 150MA 2LN 2KOHM SMD AEC-Q200
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
LGJ45B-101-2P-TL003 PDF
Availability
184 pieces
Unit Price
$7.22000

Current price of LGJ45B-101-2P-TL003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LGJ45B-101-2P-TL003 Specifications
Type Description
Series:LGJ45B
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Filter Type:-
Number of Lines:2
Impedance @ Frequency:2 kOhms @ 10 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):150mA
DC Resistance (DCR) (Max):2Ohm
Voltage Rating - DC:50V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 150°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max):0.118" (3.00mm)
Package / Case:Horizontal, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 74461240004

74461240004

CMC 400UH 3.6A 2LN TH
HOT SC-10-340

SC-10-340

CMC 3.4MH,10A, 0.032OHM

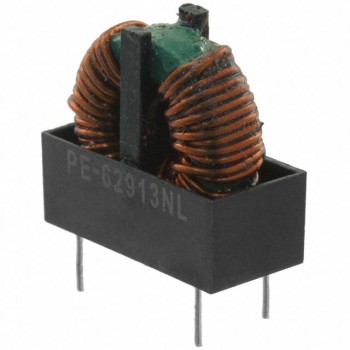

HOT PE-62913NL
