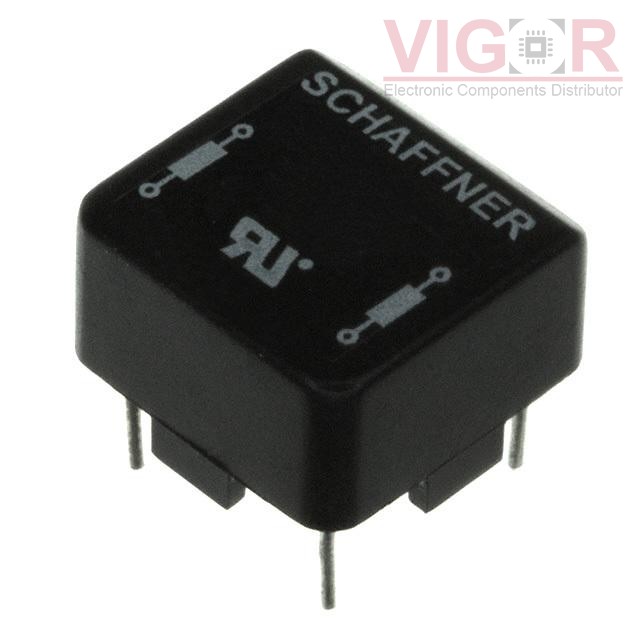

RN102-0.3-02-22M

RN102-0.3-02-22M

Image is for reference,
please contact us to get the real picture

Part No :

RN102-0.3-02-22M

Manufacturer
Schaffner EMC, Inc.
Description
CMC 22MH 300MA 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
RN102-0.3-02-22M PDF
Availability
175 pieces
Unit Price
$1.76000

Current price of RN102-0.3-02-22M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RN102-0.3-02-22M Specifications
Type Description
Series:RN
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:22 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):300mA
DC Resistance (DCR) (Max):1.3Ohm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:300V
Operating Temperature:-40°C ~ 100°C
Ratings:-
Approval Agency:ENEC, UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max):0.366" (9.30mm)
Package / Case:Horizontal, 4 PC Pin
