EH20-2.0-02-0M8

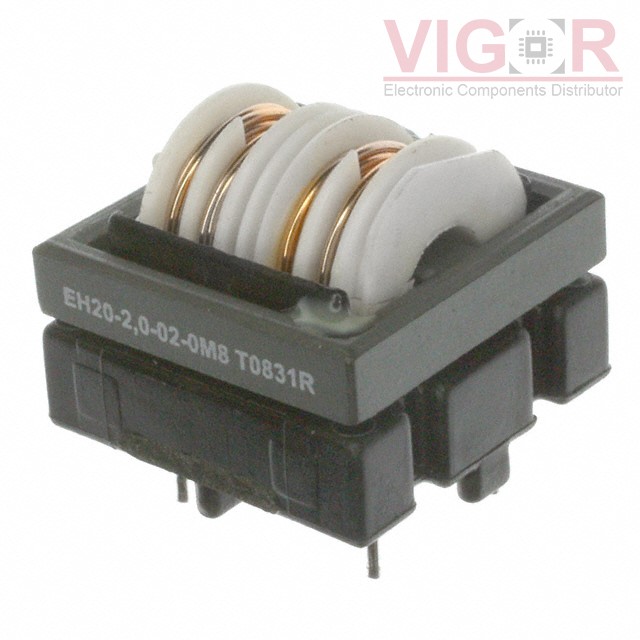

Image is for reference,
please contact us to get the real picture

Part No :: EH20-2.0-02-0M8

Manufacturer: Schaffner EMC, Inc.

Description: CMC 820UH 2A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: EH20-2.0-02-0M8 PDF

Availability: 486 pieces

Unit Price: ~~$2.08000~~

Current price of EH20-2.0-02-0M8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EH20-2.0-02-0M8 Specifications

Type	Description
Series:	EH
Package:	Tube
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	820 µH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	38mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max):	0.740" (18.80mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
