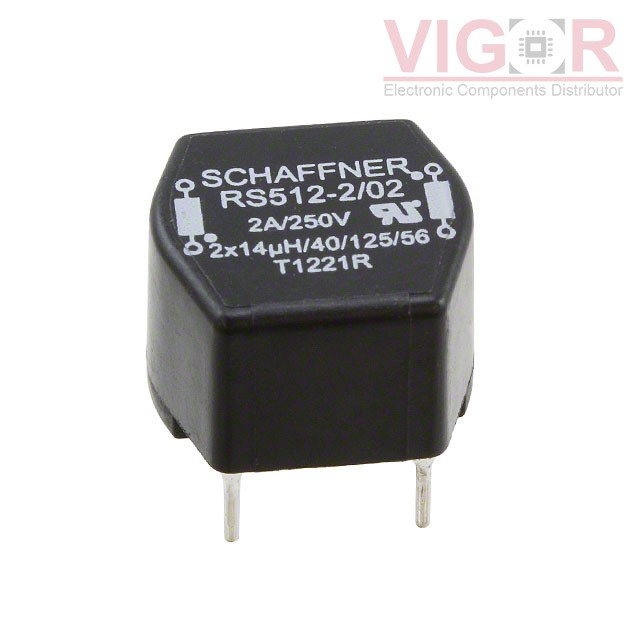

RS512-2-02

RS512-2-02

Image is for reference,
please contact us to get the real picture

Part No :

RS512-2-02

Manufacturer
Schaffner EMC, Inc.
Description
COMMON MODE CHOKE 13UH 2A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
RS512-2-02 PDF
Availability
1781 pieces
Unit Price
$3.27000

Current price of RS512-2-02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RS512-2-02 Specifications
Type Description
Series:RS
Package:Tube
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:14 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2A (Typ)
DC Resistance (DCR) (Max):30mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:0.697" L x 0.673" W (17.70mm x 17.10mm)
Height (Max):0.492" (12.50mm)
Package / Case:Horizontal, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MCZ1210AH900L2TA0G

MCZ1210AH900L2TA0G

CMC 100MA 2LN 90 OHM SMD
HOT SCR38-200-2R3A010J

SCR38-200-2R3A010J

CMC 1MH 20A 0.0035OHM TH

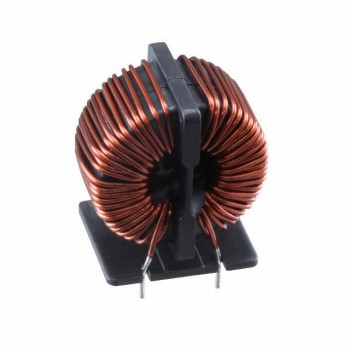

HOT RT8522-6-10M0
