DLP1NDN670HL4L

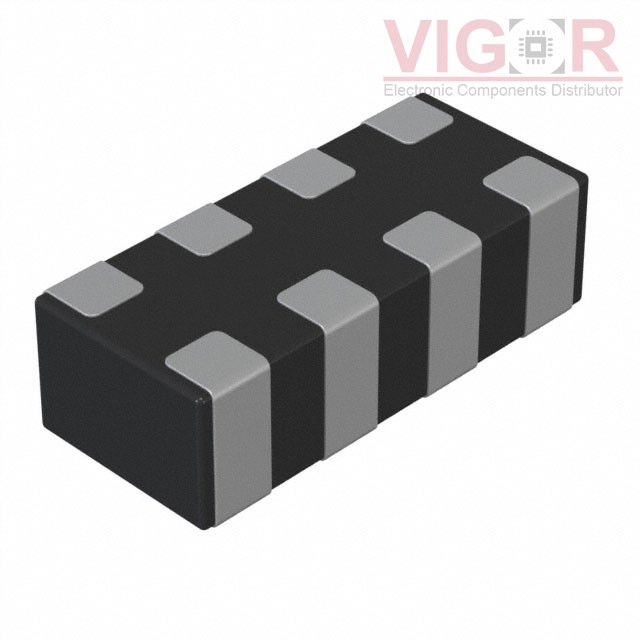

Image is for reference,
please contact us to get the real picture

Part No :: DLP1NDN670HL4L

Manufacturer: TOKO / Murata

Description: CMC 80MA 4LN 67 OHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: DLP1NDN670HL4L PDF

Availability: 0 pieces

Unit Price: ~~$1.21550~~

Current price of DLP1NDN670HL4L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DLP1NDN670HL4L Specifications

Type	Description
Series:	DLP1N
Package:	Tape & Reel (TR)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	4
Impedance @ Frequency:	67 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	80mA
DC Resistance (DCR) (Max):	3.63Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.059" L x 0.026" W (1.50mm x 0.65mm)
Height (Max):	0.020" (0.50mm)
Package / Case:	0603 (1608 Metric), 8 Lead
