B82722J2302N001

B82722J2302N001

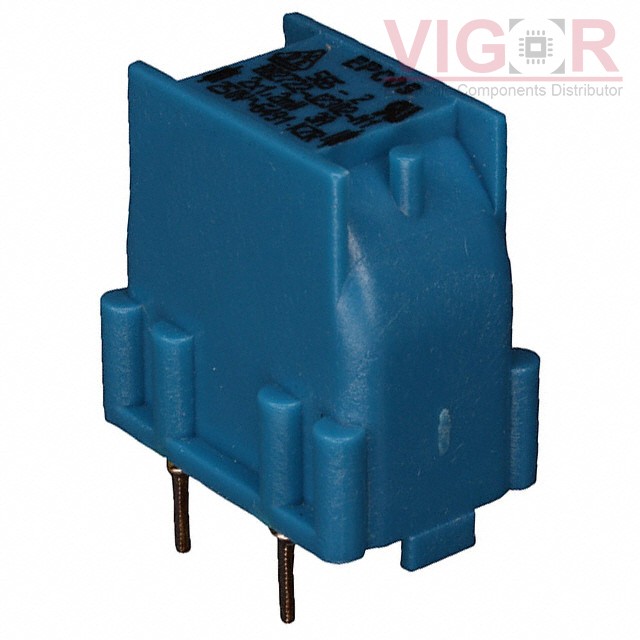

Image is for reference,
please contact us to get the real picture

Part No :

B82722J2302N001

Manufacturer
TDK EPCOS
Description
CMC 1.2MH 3A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
B82722J2302N001 PDF
Availability
157 pieces
Unit Price
$2.97000

Current price of B82722J2302N001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82722J2302N001 Specifications
Type Description
Series:B82722
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:1.2 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):3A
DC Resistance (DCR) (Max):56mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:ENEC, UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:0.917" L x 0.634" W (23.30mm x 16.10mm)
Height (Max):1.000" (25.40mm)
Package / Case:Vertical, 4 PC Pin
