TPD8F003DQDR

TPD8F003DQDR

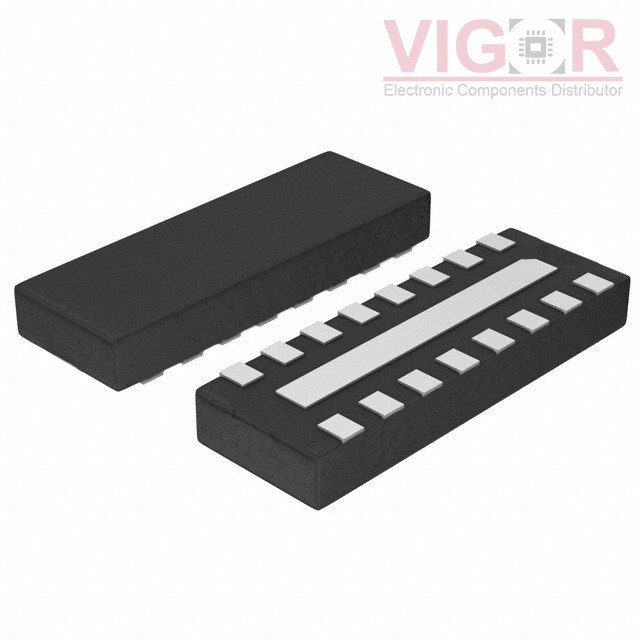

Image is for reference,
please contact us to get the real picture

Part No :

TPD8F003DQDR

Manufacturer
Texas Instruments
Description
FILTER RC(PI) 100 OHM/8.5PF SMD
Catalog
EMI/RFI Filters (LC, RC Networks)
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
TPD8F003DQDR PDF
Availability
0 pieces
Unit Price
$0.75000

Current price of TPD8F003DQDR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPD8F003DQDR Specifications
Type Description
Series:TPD
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Low Pass
Filter Order:2nd
Technology:RC (Pi)
Number of Channels:8
Center / Cutoff Frequency:200MHz (Cutoff)
Attenuation Value:25dB @ 1GHz
Resistance - Channel (Ohms):100
Current:-
Values:R = 100Ohms, C = 8.5pF
ESD Protection:Yes
Operating Temperature:-40°C ~ 85°C
Applications:Data Lines for Mobile Devices
Voltage - Rated:-
Mounting Type:Surface Mount
Package / Case:16-WFDFN Exposed Pad
Size / Dimension:0.130" L x 0.053" W (3.30mm x 1.35mm)
Height:0.031" (0.79mm)
