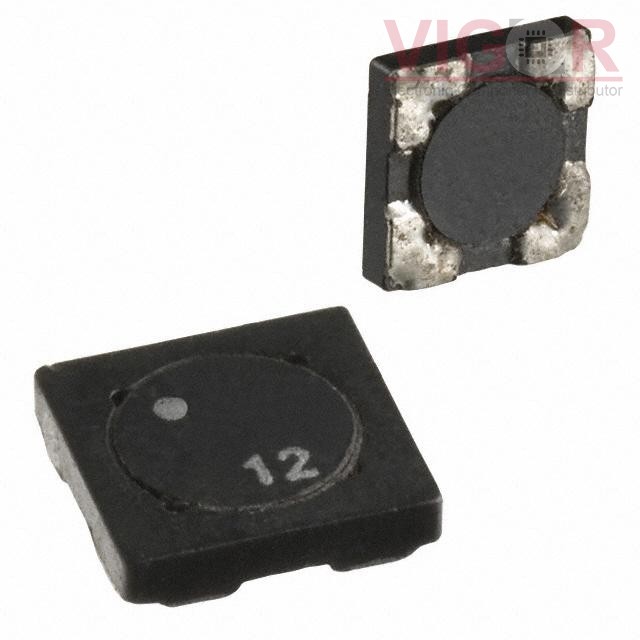

SDQ12-1R5-R

Image is for reference,
please contact us to get the real picture

Part No :: SDQ12-1R5-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 1.69UH SMD

Catalog: Arrays, Signal Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: SDQ12-1R5-R PDF

Availability: 0 pieces

Unit Price: ~~$1.46850~~

Current price of SDQ12-1R5-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ12-1R5-R Specifications

Type	Description
Series:	SDQ
Package:	Tape & Reel (TR)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	1.69 µH
Inductance - Connected In Series:	6.76 µH
Tolerance:	±20%
Current Rating - Parallel:	1.69 A
Current Rating - Series:	847 mA
Current Saturation - Parallel:	2.34 A
Current Saturation - Series:	1.17 A
DC Resistance (DCR) - Parallel:	87mOhm
DC Resistance (DCR) - Series:	348.1mOhm
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:	0.047" (1.19mm)

Please confirm the specifications of the products when ordering.
