PF0553.472NL

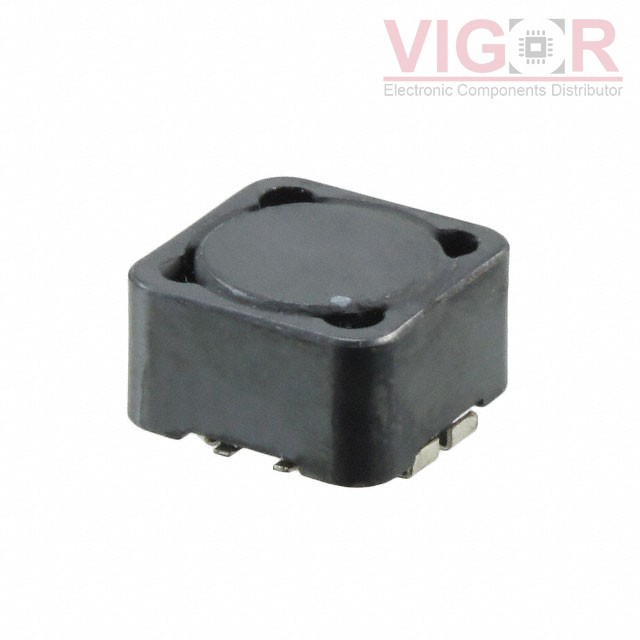

Image is for reference,
please contact us to get the real picture

Part No :: PF0553.472NL

Manufacturer: PulseLarsen Antenna

Description: INDUCT ARRAY 2 COIL 4.8UH SMD

Catalog: Arrays, Signal Transformers

Shipped from: HK warehouse

Expected Shipping Date: May 20 - May 24 2024

DataSheet: PF0553.472NL PDF

Availability: 0 pieces

Unit Price: ~~$2.02000~~

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PF0553.472NL is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

PF0553.472NL Specifications

Type	Description
Series:	PF0553NL
Package:	Tray
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	4.8 µH
Inductance - Connected In Series:	19 µH
Tolerance:	±20%
Current Rating - Parallel:	8.1 A
Current Rating - Series:	4.1 A
Current Saturation - Parallel:	16 A
Current Saturation - Series:	8.2 A
DC Resistance (DCR) - Parallel:	9.2mOhm Max
DC Resistance (DCR) - Series:	37mOhm Max
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.343" (8.71mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
