CTX20-3-R

CTX20-3-R

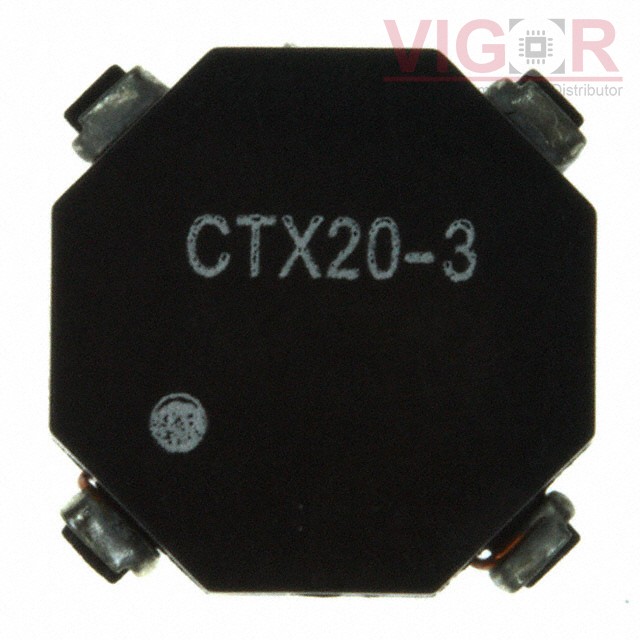

Image is for reference,
please contact us to get the real picture

Part No :

CTX20-3-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 20.18UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
CTX20-3-R PDF
Availability
0 pieces
Unit Price
$3.01500

Current price of CTX20-3-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CTX20-3-R Specifications
Type Description
Series:OCTA-PAC®
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:20.18 µH
Inductance - Connected In Series:80.74 µH
Tolerance:±20%
Current Rating - Parallel:1.5 A
Current Rating - Series:750 mA
Current Saturation - Parallel:-
Current Saturation - Series:-
DC Resistance (DCR) - Parallel:78mOhm Max
DC Resistance (DCR) - Series:312mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.550" L x 0.550" W (13.97mm x 13.97mm)
Height:0.190" (4.83mm)
