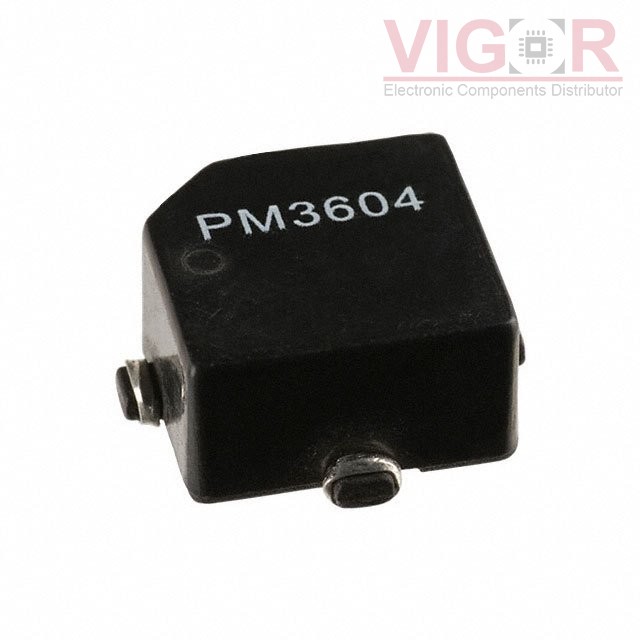

PM3604-50-RC

PM3604-50-RC

Image is for reference,
please contact us to get the real picture

Part No :

PM3604-50-RC

Manufacturer
J.W. Miller / Bourns
Description
INDUCT ARRAY 2 COIL 50UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
PM3604-50-RC PDF
Availability
14 pieces
Unit Price
$1.92000

Current price of PM3604-50-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM3604-50-RC Specifications
Type Description
Series:PM3600
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:50 µH
Inductance - Connected In Series:200 µH
Tolerance:±20%
Current Rating - Parallel:1.28 A
Current Rating - Series:640 mA
Current Saturation - Parallel:-
Current Saturation - Series:-
DC Resistance (DCR) - Parallel:120mOhm Max
DC Resistance (DCR) - Series:480mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.550" L x 0.452" W (13.97mm x 11.48mm)
Height:0.265" (6.73mm)
