SDQ12-220-R

SDQ12-220-R

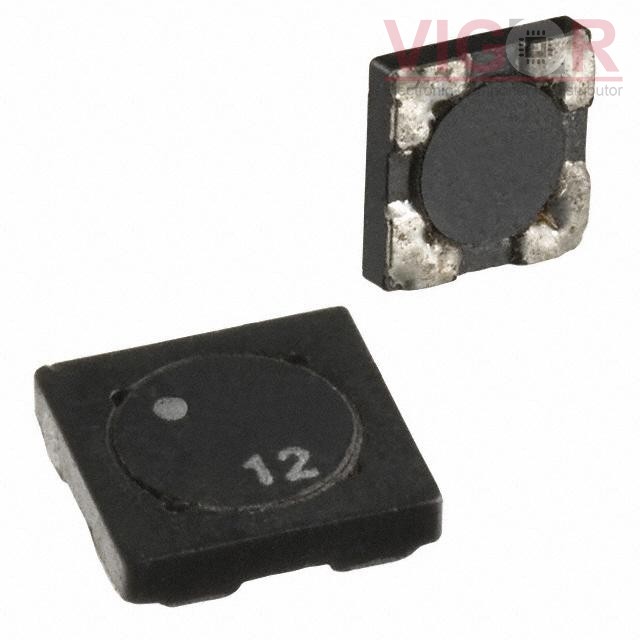

Image is for reference,
please contact us to get the real picture

Part No :

SDQ12-220-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 22.09UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SDQ12-220-R PDF
Availability
0 pieces
Unit Price
$1.82700

Current price of SDQ12-220-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ12-220-R Specifications
Type Description
Series:SDQ
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:22.09 µH
Inductance - Connected In Series:88.36 µH
Tolerance:±20%
Current Rating - Parallel:548 mA
Current Rating - Series:274 mA
Current Saturation - Parallel:647 mA
Current Saturation - Series:323 mA
DC Resistance (DCR) - Parallel:833.2mOhm
DC Resistance (DCR) - Series:3.33Ohm
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:0.047" (1.19mm)
