76889430220

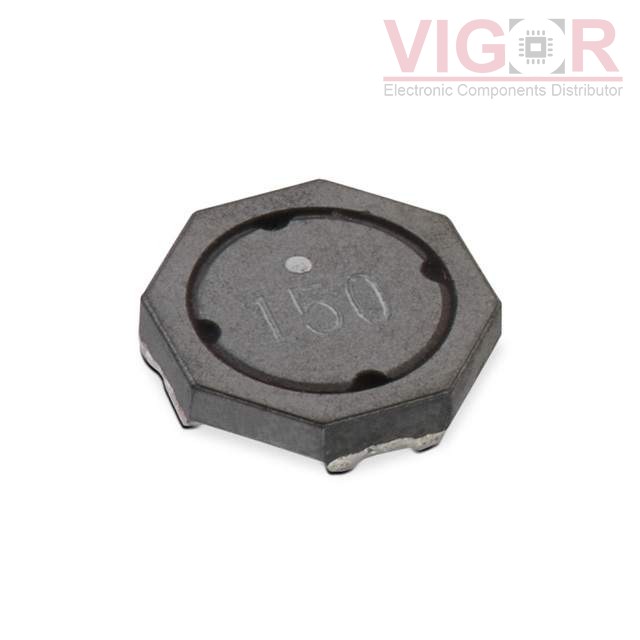

Image is for reference,
please contact us to get the real picture

Part No :: 76889430220

Manufacturer: Würth Elektronik Midcom

Description: INDUCTOR ARRAY 2 COIL 22UH SMD

Catalog: Arrays, Signal Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 76889430220 PDF

Availability: 0 pieces

Unit Price: ~~$1.37600~~

Current price of 76889430220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

76889430220 Specifications

Type	Description
Series:	WE-TDC HV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	22 µH
Inductance - Connected In Series:	-
Tolerance:	±20%
Current Rating - Parallel:	0.75 A
Current Rating - Series:	-
Current Saturation - Parallel:	1 A
Current Saturation - Series:	-
DC Resistance (DCR) - Parallel:	780mOhm
DC Resistance (DCR) - Series:	-
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height:	0.083" (2.10mm)

Please confirm the specifications of the products when ordering.
