SRF1260-8R2Y

SRF1260-8R2Y

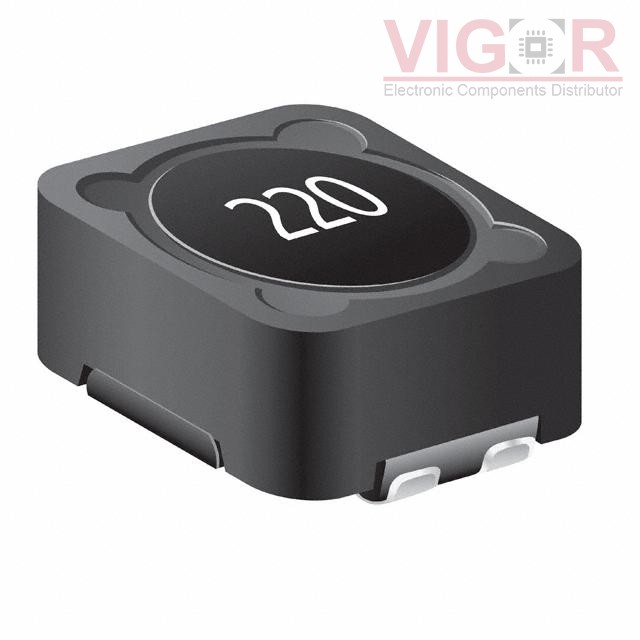

Image is for reference,
please contact us to get the real picture

Part No :

SRF1260-8R2Y

Manufacturer
J.W. Miller / Bourns
Description
INDUCT ARRAY 2 COIL 8.2UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SRF1260-8R2Y PDF
Availability
251 pieces
Unit Price
$1.39000

Current price of SRF1260-8R2Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF1260-8R2Y Specifications
Type Description
Series:SRF1260
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:8.2 µH
Inductance - Connected In Series:32.8 µH
Tolerance:±30%
Current Rating - Parallel:5.54 A
Current Rating - Series:2.77 A
Current Saturation - Parallel:7.89 A
Current Saturation - Series:3.93 A
DC Resistance (DCR) - Parallel:19.4mOhm Max
DC Resistance (DCR) - Series:73.7mOhm Max
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.244" (6.20mm)
