PF0553.822NL

PF0553.822NL

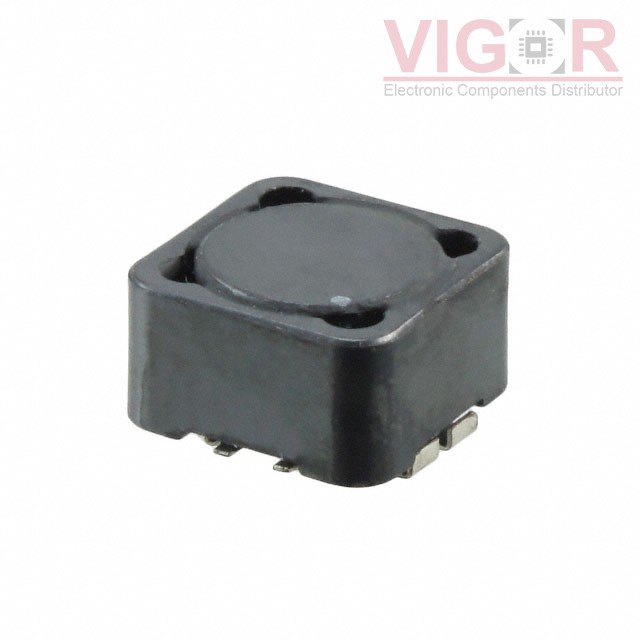

Image is for reference,
please contact us to get the real picture

Part No :

PF0553.822NL

Manufacturer
PulseLarsen Antenna
Description
INDUCT ARRAY 2 COIL 8.9UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
PF0553.822NL PDF
Availability
0 pieces
Unit Price
$2.02000

Current price of PF0553.822NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PF0553.822NL Specifications
Type Description
Series:PF0553NL
Package:Tray
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:8.9 µH
Inductance - Connected In Series:35 µH
Tolerance:±20%
Current Rating - Parallel:6.2 A
Current Rating - Series:3.1 A
Current Saturation - Parallel:12 A
Current Saturation - Series:6.1 A
DC Resistance (DCR) - Parallel:15mOhm Max
DC Resistance (DCR) - Series:62mOhm Max
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.343" (8.71mm)
