PF0552.103NLT

PF0552.103NLT

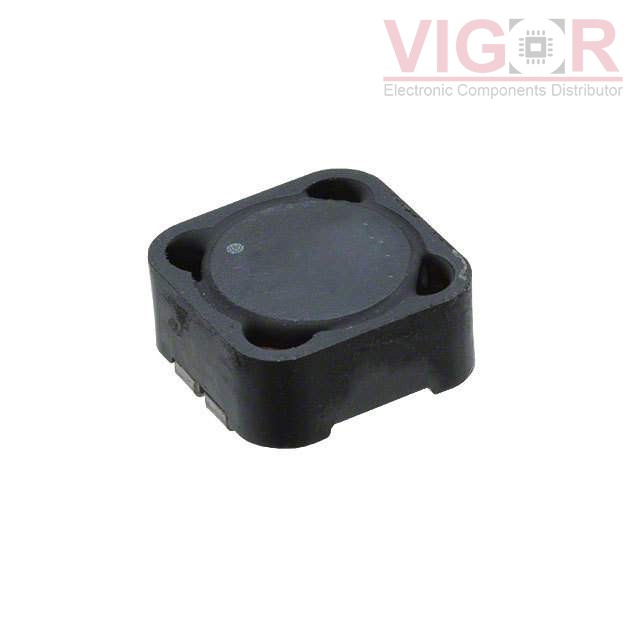

Image is for reference,
please contact us to get the real picture

Part No :

PF0552.103NLT

Manufacturer
PulseLarsen Antenna
Description
INDUCT ARRAY 2 COIL 9.7UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
PF0552.103NLT PDF
Availability
0 pieces
Unit Price
$0.97650

Current price of PF0552.103NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PF0552.103NLT Specifications
Type Description
Series:PF0552NL
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:9.7 µH
Inductance - Connected In Series:39 µH
Tolerance:±20%
Current Rating - Parallel:6 A
Current Rating - Series:3 A
Current Saturation - Parallel:7.2 A
Current Saturation - Series:3.6 A
DC Resistance (DCR) - Parallel:19mOhm Max
DC Resistance (DCR) - Series:73mOhm Max
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.236" (6.00mm)
