SDQ25-1R0-R

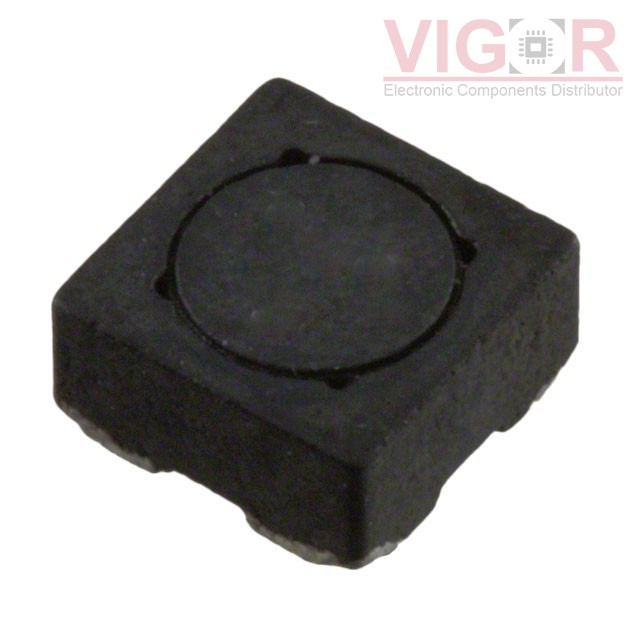

Image is for reference,
please contact us to get the real picture

Part No :: SDQ25-1R0-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 970NH SMD

Catalog: Arrays, Signal Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: SDQ25-1R0-R PDF

Availability: 0 pieces

Unit Price: ~~$1.53700~~

Current price of SDQ25-1R0-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ25-1R0-R Specifications

Type	Description
Series:	SDQ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	970 nH
Inductance - Connected In Series:	3.87 µH
Tolerance:	±20%
Current Rating - Parallel:	3.15 A
Current Rating - Series:	1.58 A
Current Saturation - Parallel:	4.09 A
Current Saturation - Series:	2.05 A
DC Resistance (DCR) - Parallel:	25.2mOhm
DC Resistance (DCR) - Series:	100.7mOhm
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:	0.098" (2.50mm)

Please confirm the specifications of the products when ordering.
