SDQ25-331-R

SDQ25-331-R

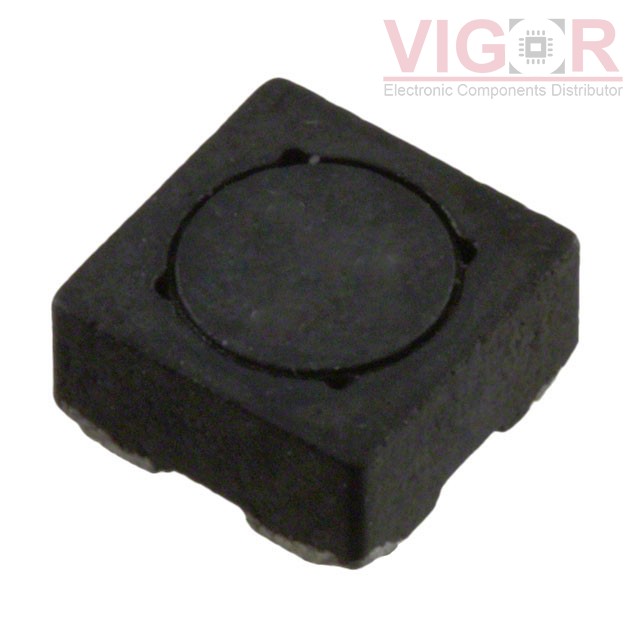

Image is for reference,
please contact us to get the real picture

Part No :

SDQ25-331-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 329.7UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SDQ25-331-R PDF
Availability
0 pieces
Unit Price
$1.69650

Current price of SDQ25-331-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ25-331-R Specifications
Type Description
Series:SDQ
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:329.7 µH
Inductance - Connected In Series:1.3 mH
Tolerance:±20%
Current Rating - Parallel:292 mA
Current Rating - Series:146 mA
Current Saturation - Parallel:222 mA
Current Saturation - Series:111 mA
DC Resistance (DCR) - Parallel:2.93Ohm
DC Resistance (DCR) - Series:11.71Ohm
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:0.098" (2.50mm)
