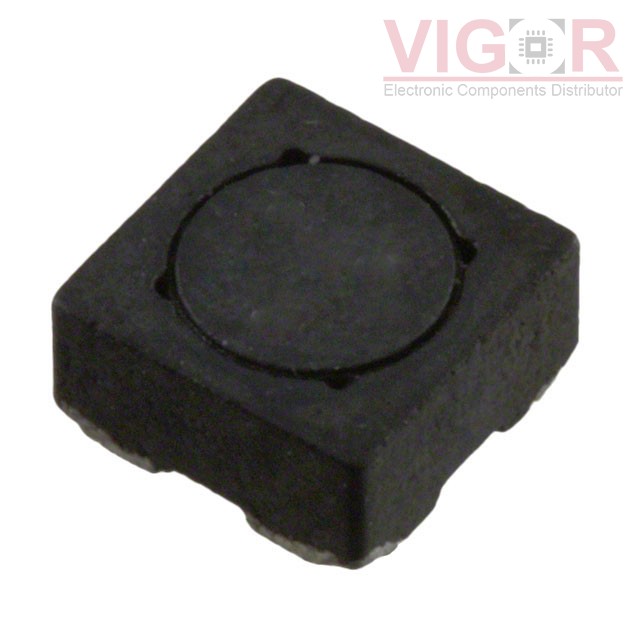

SDQ25-100-R

Image is for reference,
please contact us to get the real picture

Part No :: SDQ25-100-R

Manufacturer: PowerStor (Eaton)

Description: INDUCT ARRAY 2 COIL 9.8UH SMD

Catalog: Arrays, Signal Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: SDQ25-100-R PDF

Availability: 1894 pieces

Unit Price: ~~$3.10000~~

Current price of SDQ25-100-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ25-100-R Specifications

Type	Description
Series:	SDQ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	9.8 µH
Inductance - Connected In Series:	39.2 µH
Tolerance:	±20%
Current Rating - Parallel:	1.53 A
Current Rating - Series:	765 mA
Current Saturation - Parallel:	1.29 A
Current Saturation - Series:	643 mA
DC Resistance (DCR) - Parallel:	106.8mOhm
DC Resistance (DCR) - Series:	427.3mOhm
Shielding:	Shielded
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:	0.098" (2.50mm)
