SRF1280A-821M

SRF1280A-821M

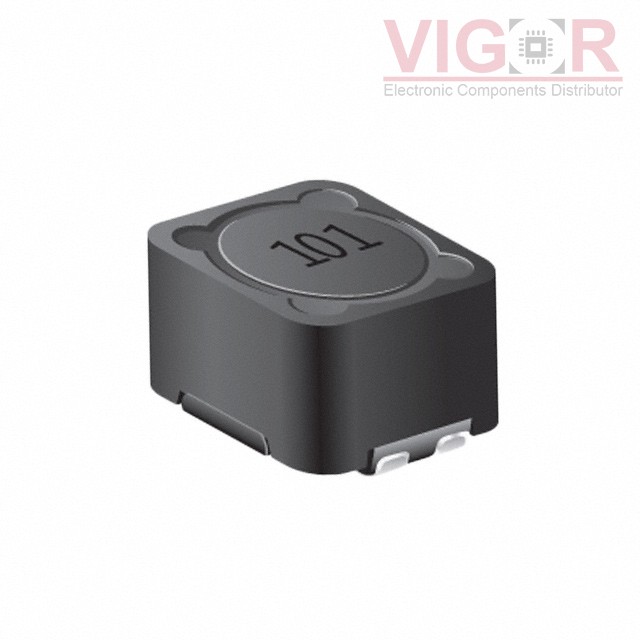

Image is for reference,
please contact us to get the real picture

Part No :

SRF1280A-821M

Manufacturer
J.W. Miller / Bourns
Description
INDUCT ARRAY 2 COIL 820UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
SRF1280A-821M PDF
Availability
0 pieces
Unit Price
$0.94473

Current price of SRF1280A-821M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF1280A-821M Specifications
Type Description
Series:SRF1280A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:820 µH
Inductance - Connected In Series:3.28 mH
Tolerance:±20%
Current Rating - Parallel:650 mA
Current Rating - Series:325 mA
Current Saturation - Parallel:1.27 A
Current Saturation - Series:633 mA
DC Resistance (DCR) - Parallel:1.632Ohm Max
DC Resistance (DCR) - Series:5.896Ohm Max
Shielding:Shielded
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.315" (8.00mm)
