744851220

744851220

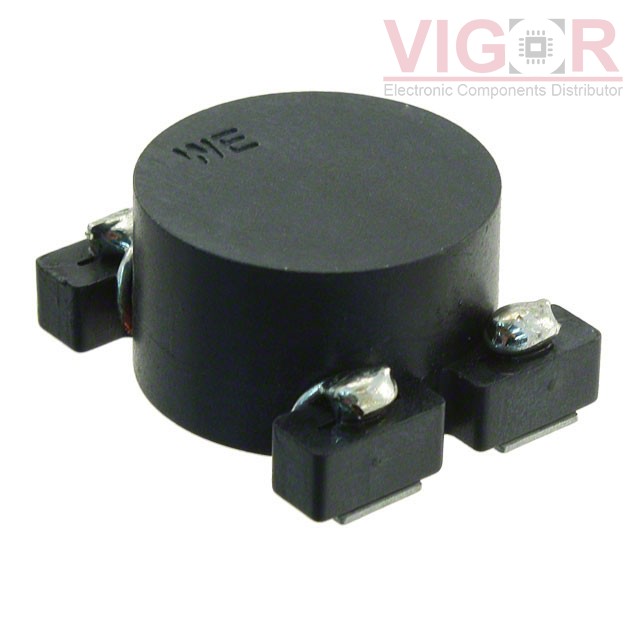

Image is for reference,
please contact us to get the real picture

Part No :

744851220

Manufacturer
Würth Elektronik Midcom
Description
INDUCT ARRAY 2 COIL 2.2UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
744851220 PDF
Availability
0 pieces
Unit Price
$4.68200

Current price of 744851220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744851220 Specifications
Type Description
Series:WE-DCT
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:2.2 µH
Inductance - Connected In Series:8.8 µH
Tolerance:±20%
Current Rating - Parallel:8.6 A
Current Rating - Series:4.3 A
Current Saturation - Parallel:17 A
Current Saturation - Series:8.5 A
DC Resistance (DCR) - Parallel:8.5mOhm Max
DC Resistance (DCR) - Series:-
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.906" L x 0.728" W (23.00mm x 18.50mm)
Height:0.453" (11.50mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT DRQ74-100-R

DRQ74-100-R

INDUCT ARRAY 2 COIL 9.882UH SMD

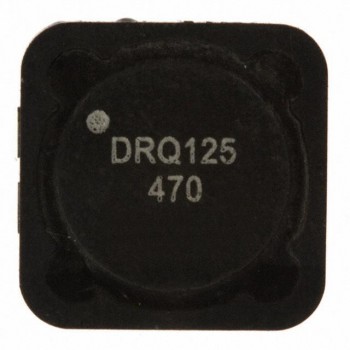

HOT DRQ125-470-R

DRQ125-470-R

INDUCT ARRAY 2 COIL 47.47UH SMD

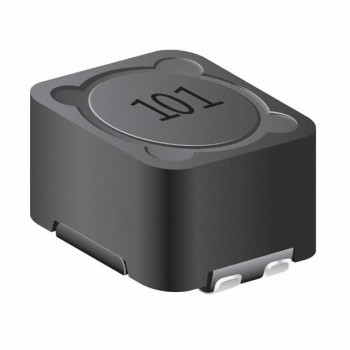

HOT SRF1280-471M
