SDQ25-470-R

SDQ25-470-R

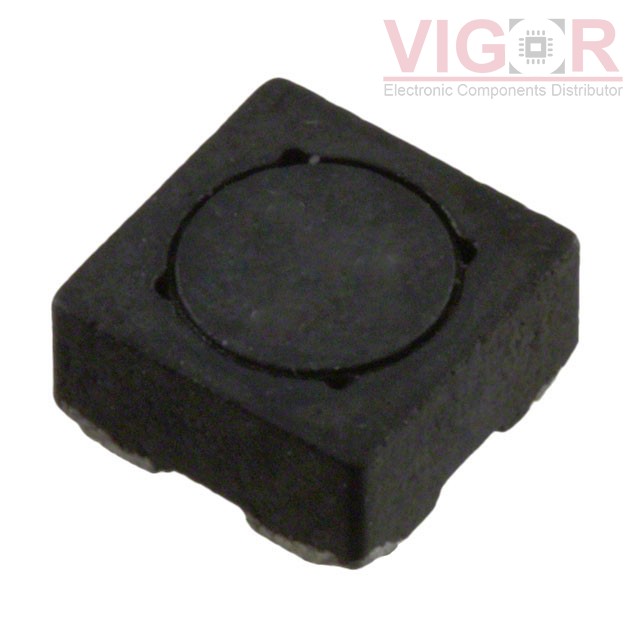

Image is for reference,
please contact us to get the real picture

Part No :

SDQ25-470-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 47.43UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
SDQ25-470-R PDF
Availability
0 pieces
Unit Price
$1.79800

Current price of SDQ25-470-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDQ25-470-R Specifications
Type Description
Series:SDQ
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:47.43 µH
Inductance - Connected In Series:189.7 µH
Tolerance:±20%
Current Rating - Parallel:749 mA
Current Rating - Series:374 mA
Current Saturation - Parallel:584 mA
Current Saturation - Series:292 mA
DC Resistance (DCR) - Parallel:446.1mOhm
DC Resistance (DCR) - Series:1.78Ohm
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height:0.098" (2.50mm)
