SRF1260-680M

SRF1260-680M

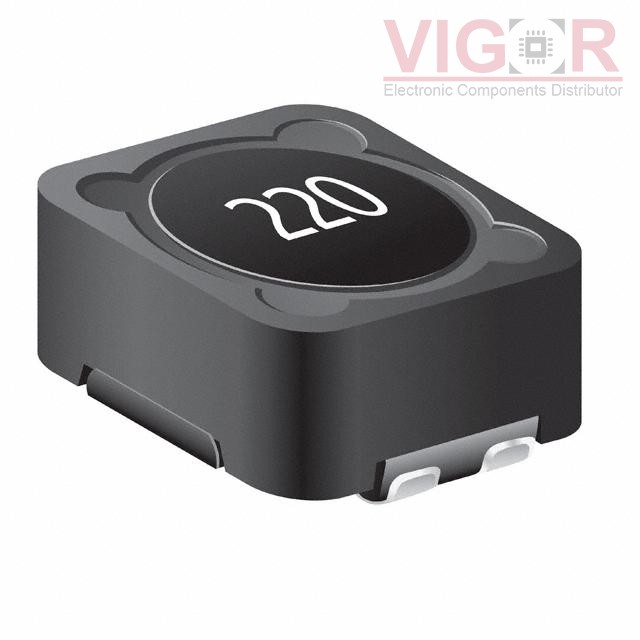

Image is for reference,
please contact us to get the real picture

Part No :

SRF1260-680M

Manufacturer
J.W. Miller / Bourns
Description
INDUCT ARRAY 2 COIL 68UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
SRF1260-680M PDF
Availability
918 pieces
Unit Price
$1.39000

Current price of SRF1260-680M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF1260-680M Specifications
Type Description
Series:SRF1260
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:68 µH
Inductance - Connected In Series:272 µH
Tolerance:±20%
Current Rating - Parallel:2.22 A
Current Rating - Series:1.11 A
Current Saturation - Parallel:2.7 A
Current Saturation - Series:1.35 A
DC Resistance (DCR) - Parallel:117mOhm Max
DC Resistance (DCR) - Series:444mOhm Max
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.244" (6.20mm)
