SCX147-0R47

SCX147-0R47

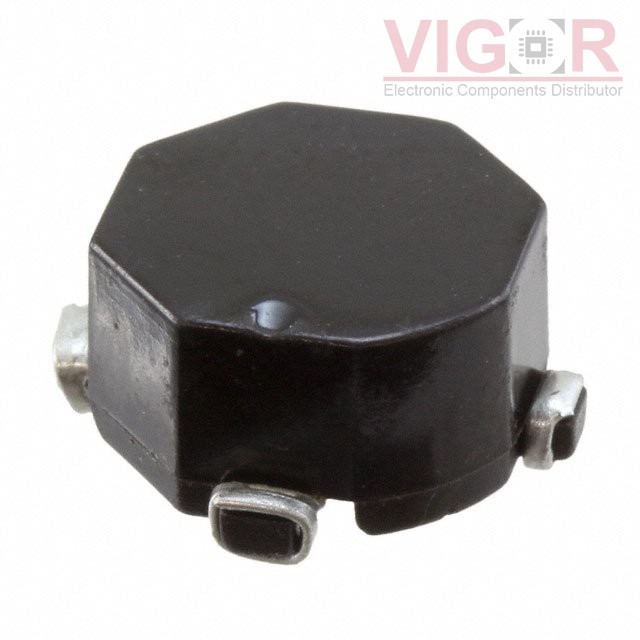

Image is for reference,
please contact us to get the real picture

Part No :

SCX147-0R47

Manufacturer
Signal Transformer
Description
INDUCT ARRAY 2 COIL 470NH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
SCX147-0R47 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SCX147-0R47 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SCX147-0R47 Specifications
Type Description
Series:SCX147
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Number of Coils:2
Inductance - Connected In Parallel:470 nH
Inductance - Connected In Series:1.76 µH
Tolerance:±20%
Current Rating - Parallel:7 A
Current Rating - Series:3.5 A
Current Saturation - Parallel:-
Current Saturation - Series:-
DC Resistance (DCR) - Parallel:4mOhm Max
DC Resistance (DCR) - Series:16mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.567" L x 0.567" W (14.40mm x 14.40mm)
Height:0.276" (7.00mm)
