PF0552.822NLT

PF0552.822NLT

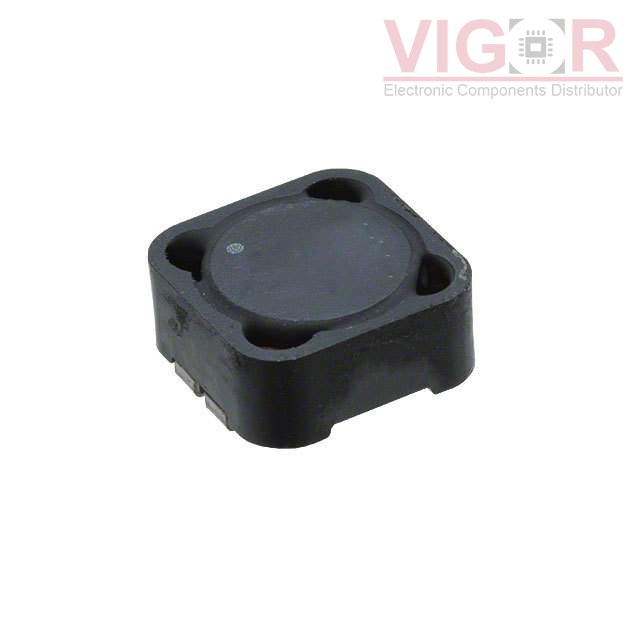

Image is for reference,
please contact us to get the real picture

Part No :

PF0552.822NLT

Manufacturer
PulseLarsen Antenna
Description
INDUCT ARRAY 2 COIL 8.1UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
PF0552.822NLT PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PF0552.822NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PF0552.822NLT Specifications
Type Description
Series:PF0552NL
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:8.1 µH
Inductance - Connected In Series:32 µH
Tolerance:±20%
Current Rating - Parallel:6.5 A
Current Rating - Series:3.3 A
Current Saturation - Parallel:7.8 A
Current Saturation - Series:3.9 A
DC Resistance (DCR) - Parallel:18mOhm Max
DC Resistance (DCR) - Series:66mOhm Max
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:0.236" (6.00mm)
